GS-Ground Mounting System Solution
Transformer combiner box integrated bracket
Enquiry Now.png)
Solution Intro

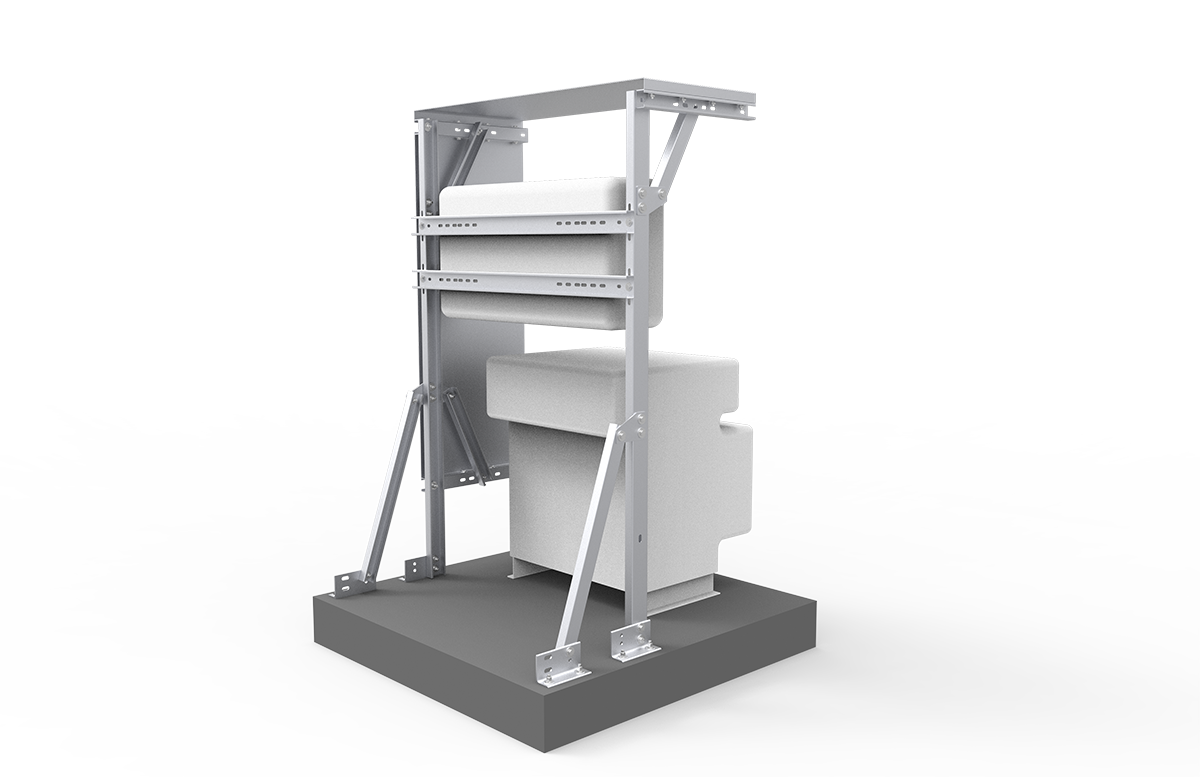

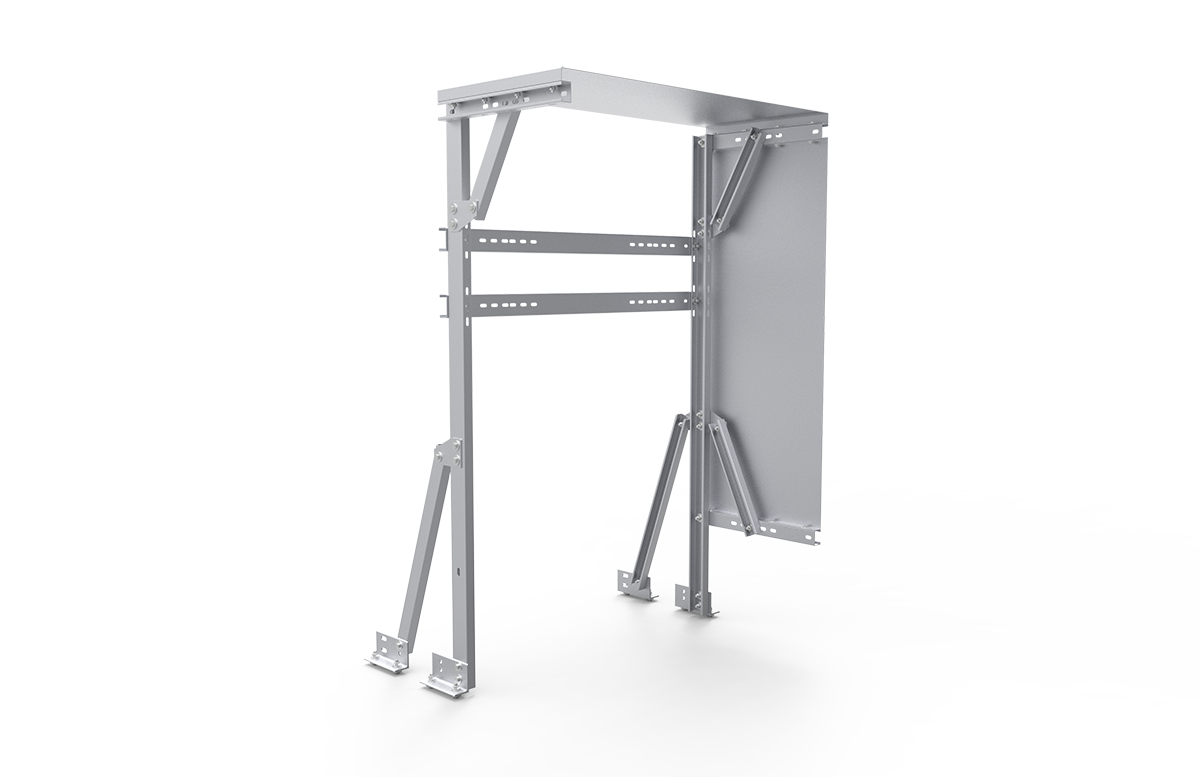

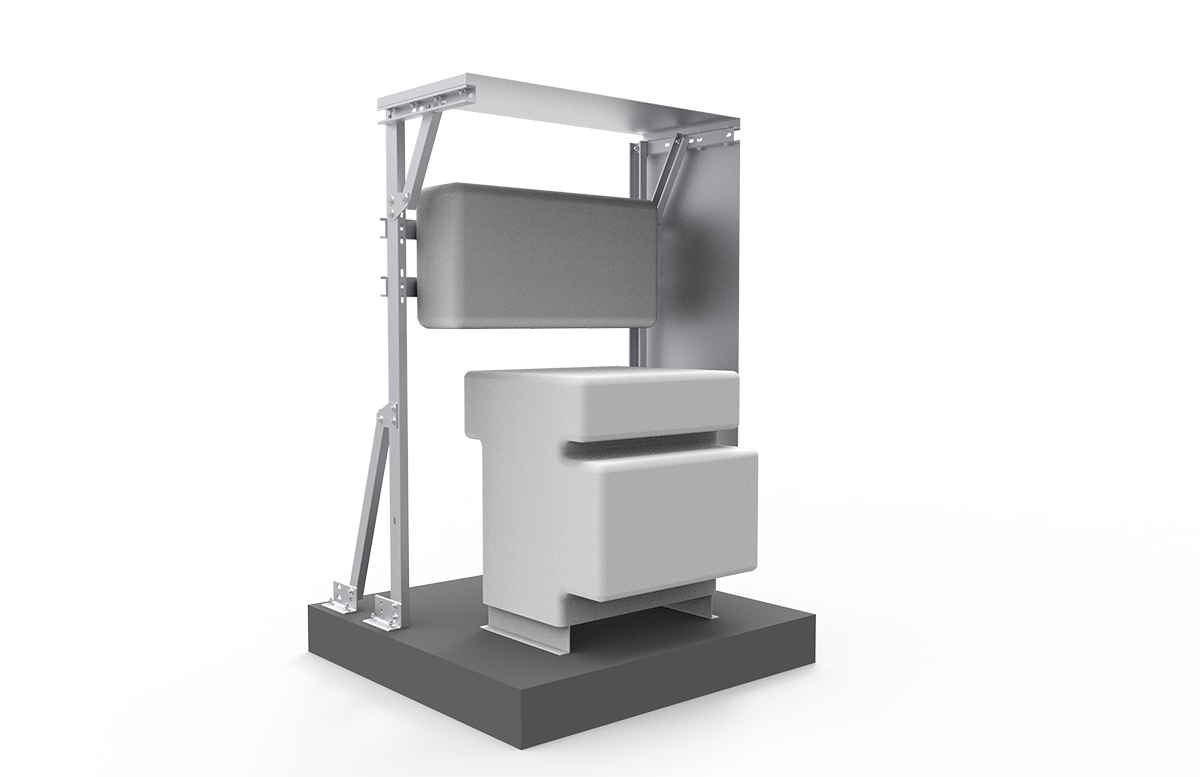

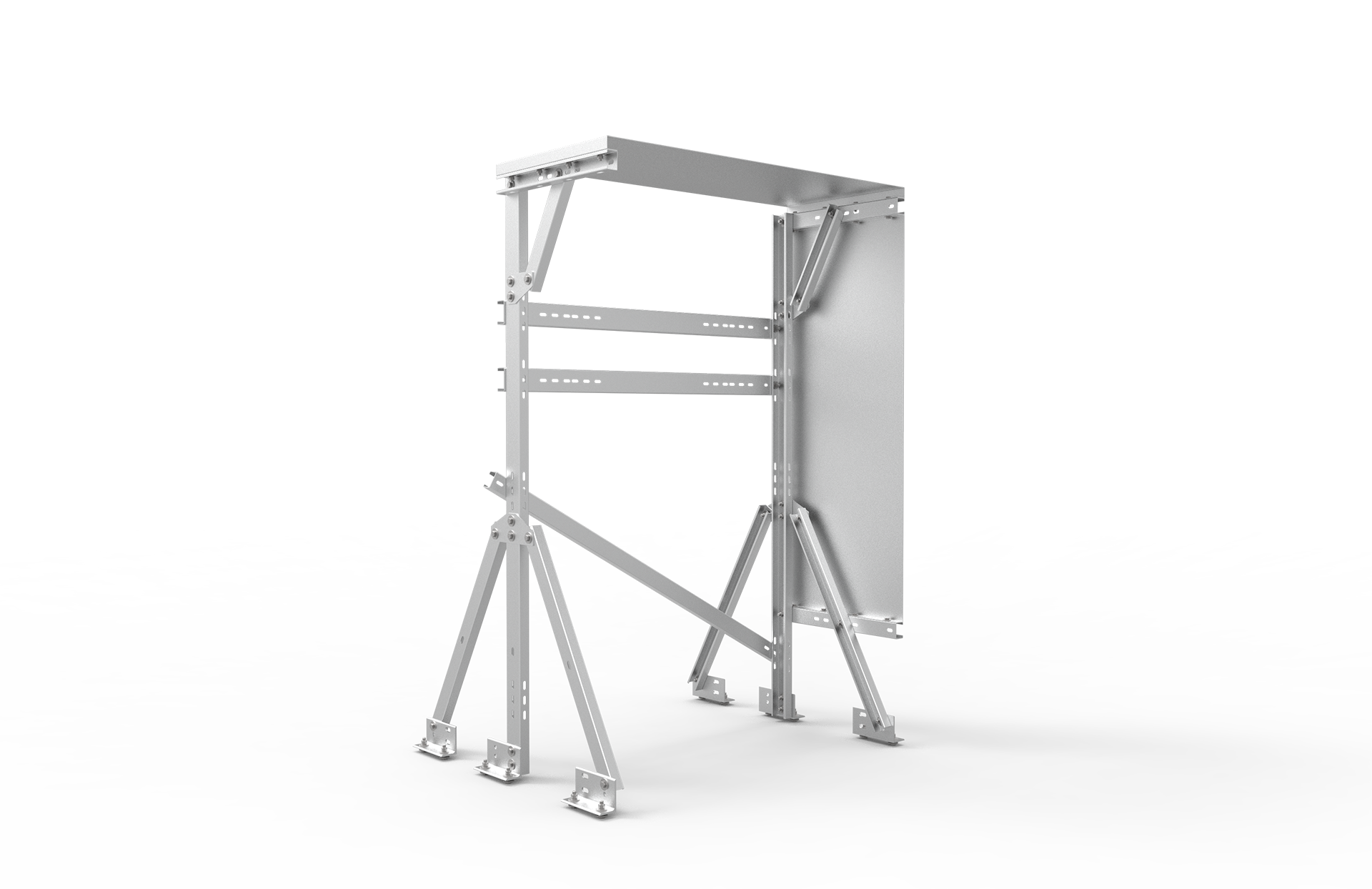

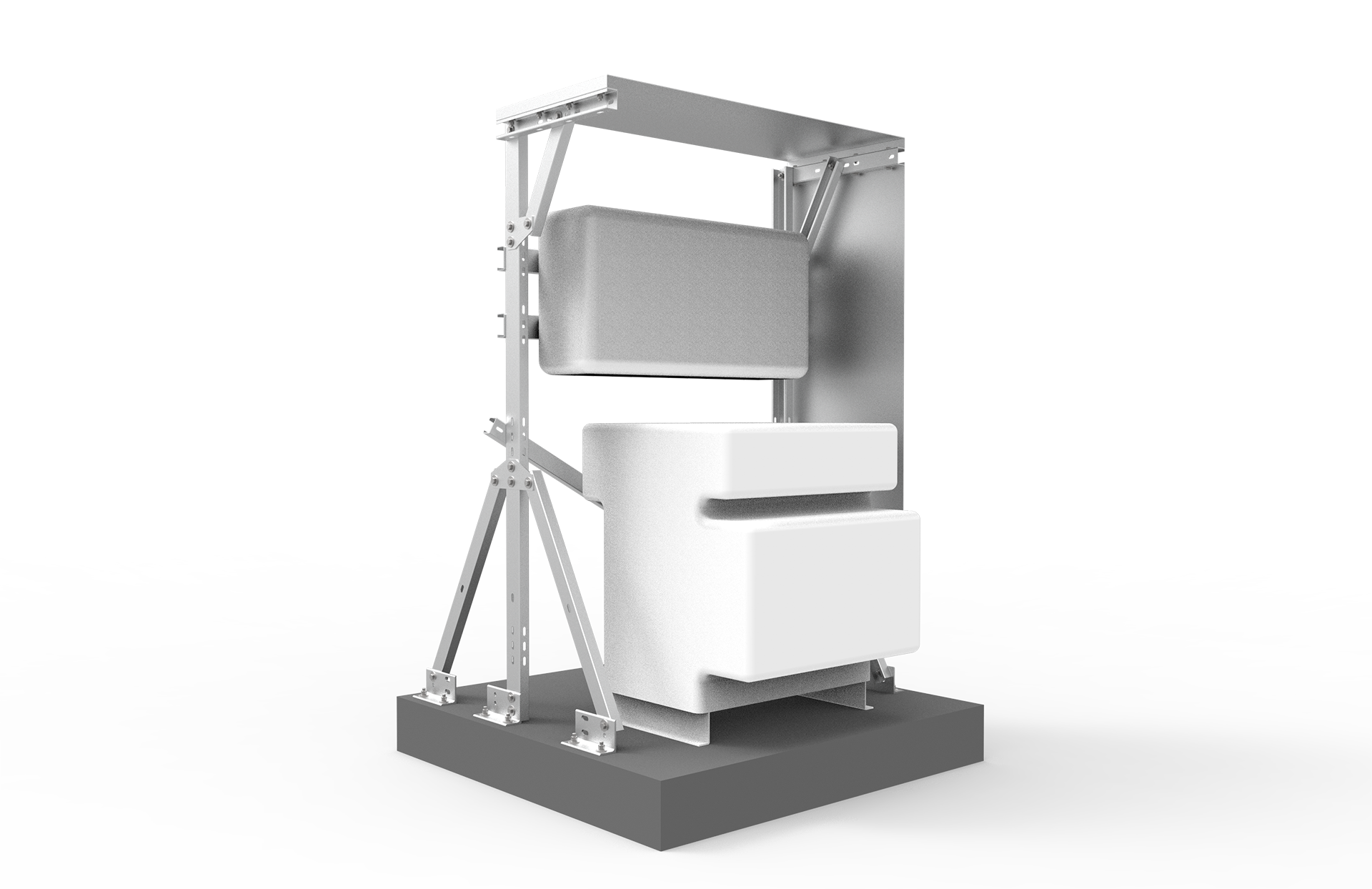

The GS transformer + combiner box integrated bracket that allows the PCS to be placed
above a step-down transformer. It is constructed with high-strength C-shaped steel, possessing robust mechanical properties and suitable for various rooftop installation projects. The bracket is fixed to a concrete foundation, completely avoiding the damage
to the soil and roof structure caused by traditional methods, ensuring safety and reliability. Its unique "rack-on-rack" design allows the PCS to be placed directly above the transformer, significantly saving the installation space.
PDF DownloadFeatures
-
Fault detection
-
Easy to assemble
-
Gain increasement
-
Safe and reliable
-
Wireless transmission
-
One-key adjustment
Application
It is applicable to all power plant projects.
Technical Specs
Technical Parameters
| Installation site | Ground |
Foundation |
Concrete |
|
Structural Height |
2-3m |
Reference Standard |
JIS C 8955 or local standards |
|
Material |
Q235 / S420GD-ZM275 |
Color |
Silver or customized |
|
Surface treatment |
Hot-dip galvanized / Aluminium-Zinc-Magnesium coated |
Maximum wind speed |
<46m/s |
|
Maximum snow cover |
<100cm |
Warranty |
10 Years |
|
|
|
|
|
