GS-Roof Mounting System Solution
X-L X-Rail
Enquiry Now.png)
Solution Intro

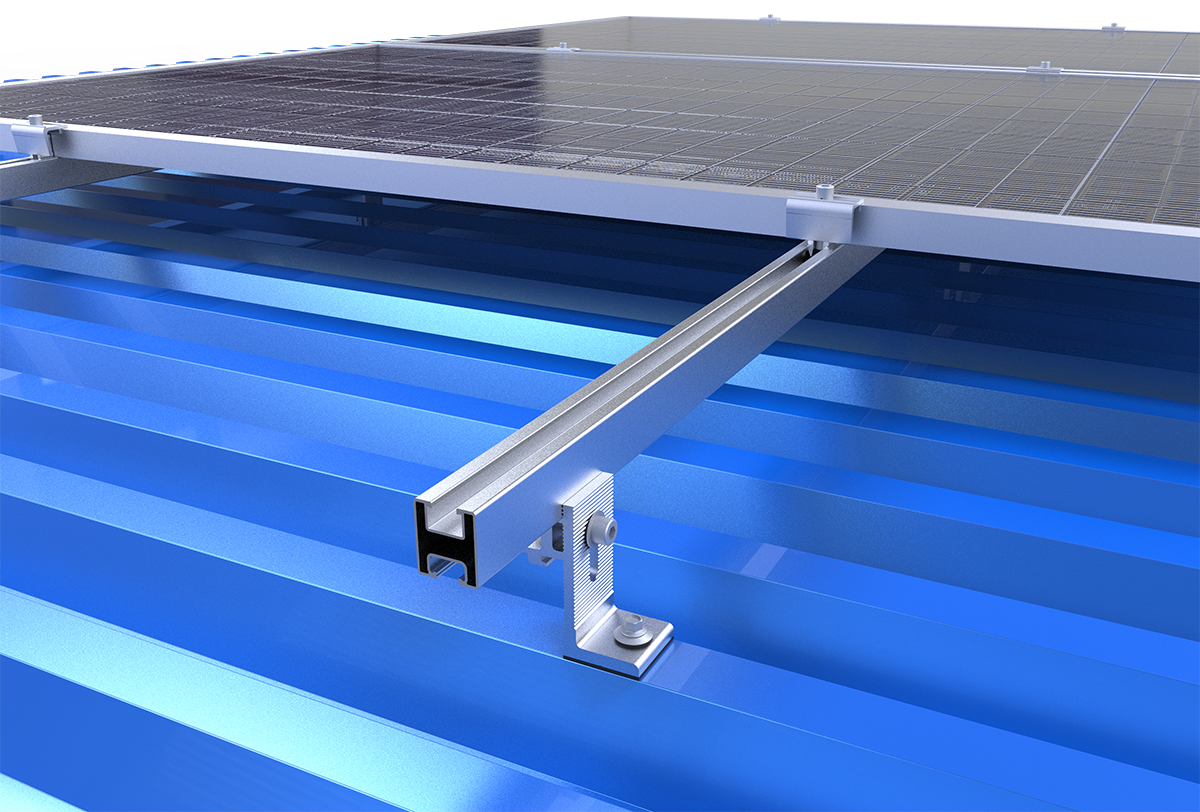

GS-X-L X-Rail (X Series product, including rail, rail clamps, connectors, inter and end clamps, hooks and clamps). This series is suitable for metal roofs, magnetic tile roofs, asphalt shingle roofs, etc., with matching hooks or clamps fixed to roofs. It fixes PV modules through matching clamps within commercial or residential rooftop solar system planning.
PDF DownloadFeatures
-
Pre-assembled for easy installation
-
Increase output power
-
Wide applicability
-
Safe and reliable
Application
It is suitable for flat roof PV power plant projects.
Technical Specs
Technical Information
| Installation site | Commercial and Residential Roof |
Angle |
Parallel roof 10-45° |
|
Material |
High-strength aluminum alloy & Stainless steel |
Color |
Silver or customized |
|
Surface treatment |
Anodizing & Stainless steel |
Maximum wind speed |
<60m/s |
|
Maximum snow cover |
<200cm |
Reference standards |
ASCE7-10 & Other |
| Building height |
<1.4KN/m² |
Warranty |
10 Years |
| Usage time |
More than 20 years |
|
|
