GS-Roof Mounting System Solution
Flat Roof (Carbon Steel Roof Mounting System)
Enquiry Now.png)
Solution Intro
The GS Carbon Steel Roof Mounting System employs a double-folded U-shaped steel design. It is suitable for flat roofs and fixed by precast concrete bases and carbon steel & alloy steel combined. Featuring a safe and simple design and easy installation, it fixes PV modules through matching clamps within commercial or residential rooftop solar system planning.
PDF DownloadFeatures
-
Pre-assembled for easy installation
-
Increase output power
-
Wide applicability
-
Safe and reliable
Application

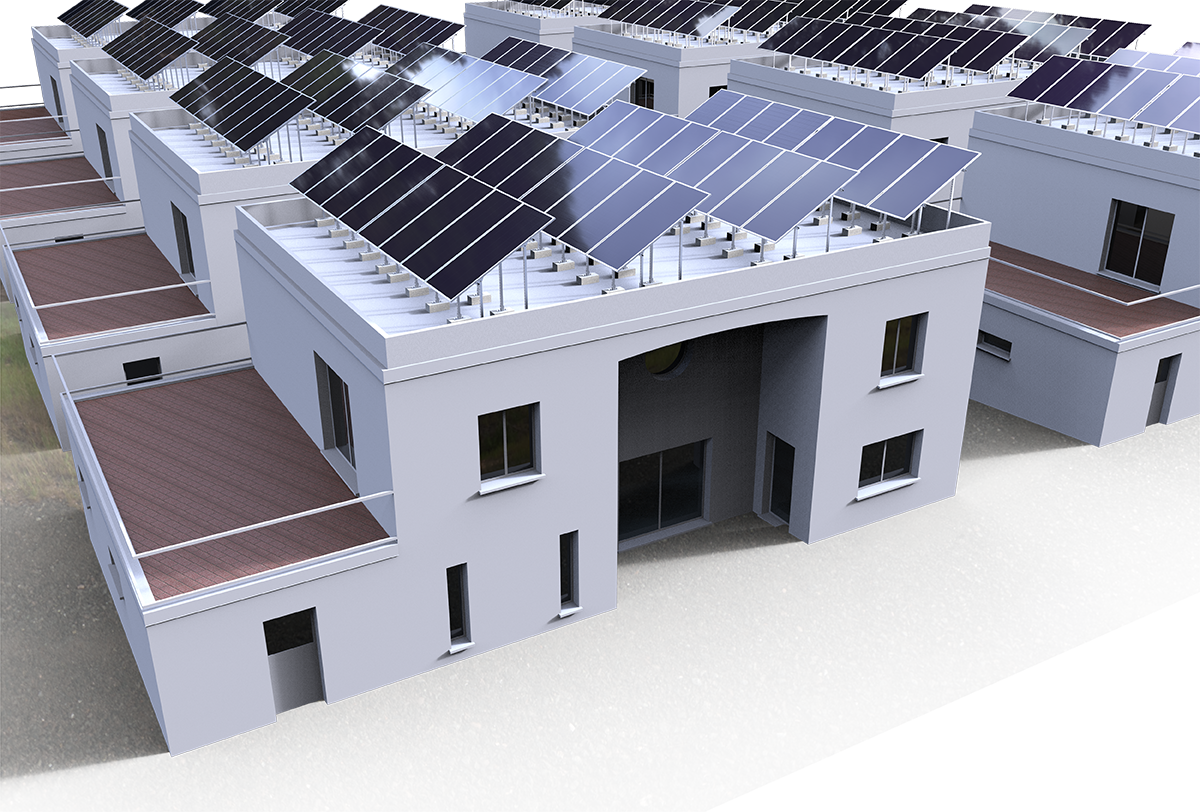

It is suitable for flat roof PV power plant projects.
Technical Specs
Technical Information
| Installation site | Commercial and Residential Roof |
Angle |
0-45° |
|
Material |
Carbon steel & Alloy steel |
Color |
Silver or customized |
|
Surface treatment |
Hot-dip galvanized or |
Maximum wind speed |
<60m/s |
|
Maximum snow cover |
<200cm |
Reference standards |
ASCE7-10 & Other |
| Building height |
<20m |
Warranty |
10 Years |
| Usage time |
More than 20 years |
|
|
