GS-Roof Mounting System Solution

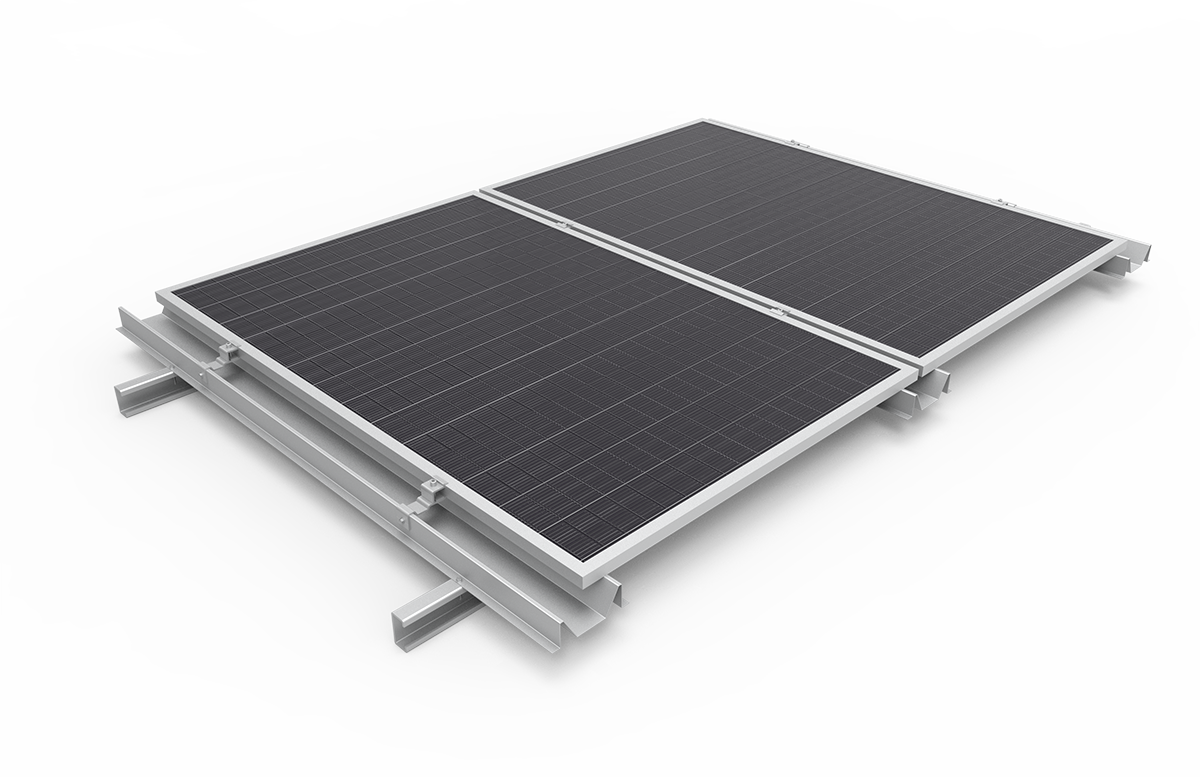

BIPV System (M Series Water Guide Gutter )
Enquiry Now.png)
.png)
Solution Intro

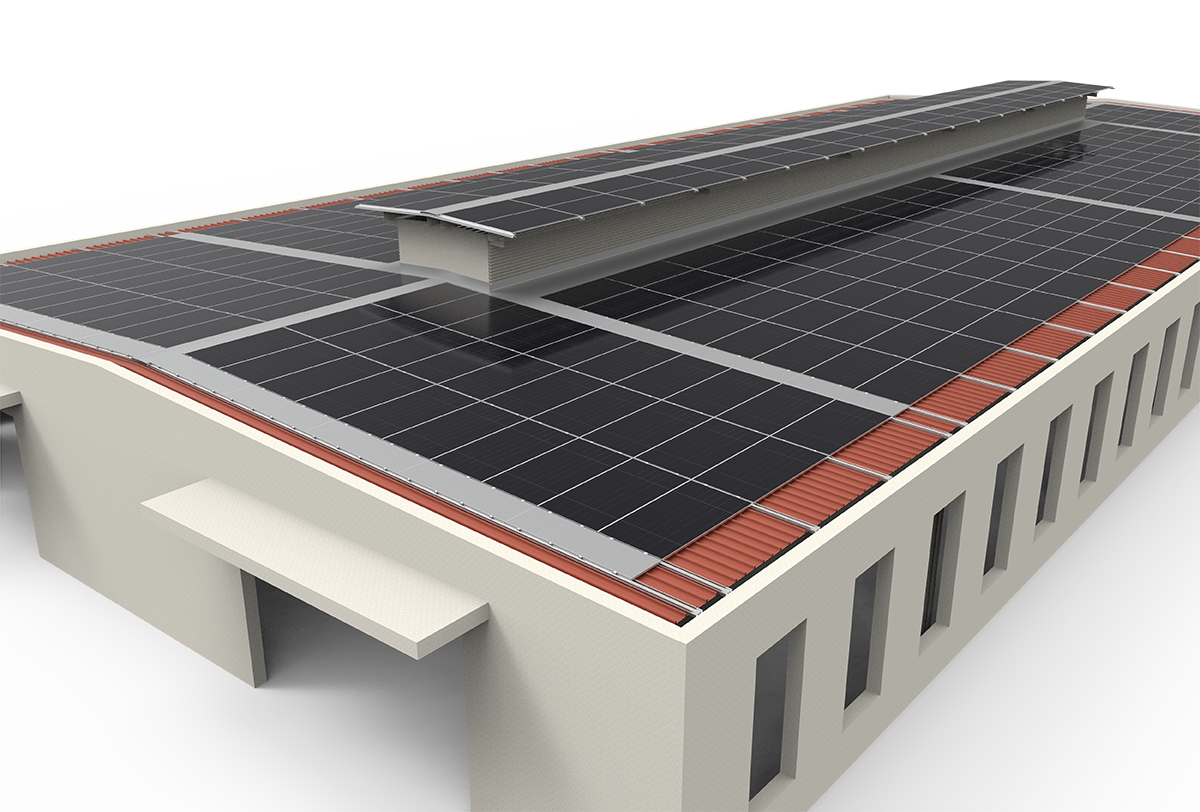

Building Integrated Photovoltaics (BIPV) organically combines solar with architecture, employing PV modules as roof envelope structure to replace conventional metal roofs. During original factory construction, once primary structures (columns, beams) and secondary structures (purlins and pull rods) are installed, or when existing buildings require metal sheet replacement, the entire roof solution can be provided by the BIPV system.
PDF DownloadFeatures
-
Pre-assembled for easy installation
-
Increase output power
-
Wide applicability
-
Safe and reliable
Application
It is suitable for flat roof PV power plant projects.
Technical Specs
Technical Information
| Installation site | Industry · Commercial · Residential Roof |
Angle |
10°, 15°, 45° |
|
Material |
Alloy Steel |
Color |
Silver or customized |
|
Surface treatment |
Aluminium-Zinc-Magnesium coated |
Maximum wind speed |
<60m/s |
|
Maximum snow cover |
<1.4KN/m² |
Reference standards |
ASCE7-10 & Other |
| Building height |
<20m |
Warranty |
10 Years |
| Usage time |
More than 20 years |
|
|
